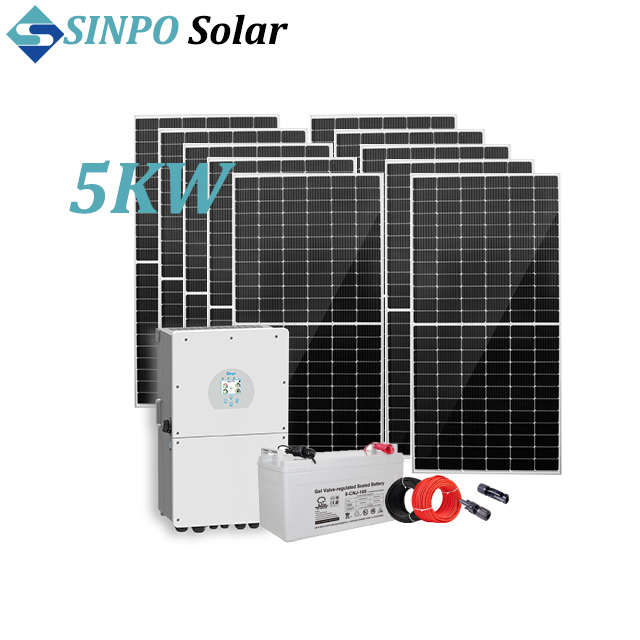

5KW Solar Energy System
Material List
Model | SP-5KW-A | SP-5KW-B | SP-5KW-C | Remarks |
Solar Panel | 32V270W*8 PCS | 32V320W*10 PCS | 32V320W*14 PCS | Polysilicon |
Storage Battery | 12V100AH*8 PCS | 12V150AH*8 PCS | 12V200AH*8 PCS | Gel Battery |
Off Grid Inverter | 5KW | 5KW | 5KW | Power Frequency Machine |
Solar Controller | 48V60A | 48V80A | 48V100A | MPPT Controller |
Solar Structure | √ | √ | √ | Aluminum Alloy/Zinc Aluminum Magnesium |
PV Cable | √ | √ | √ | |
Solar Power Generation(KW.H) | 9.7 | 14.4 | 20.1 | Calculated according to 4.5 hours of peak sunshine |
Battery Storage Capacity(KW.H) | 9.6 | 14.4 | 19.2 |
Use Time of Electrical Equipment
Electrical Equipment | Power(W) | SP-5KW-A | SP-5KW-B | SP-5KW-C |
TV | 100W | 86.4H | 129.6H | 172.8H |
Water Pump | 800W | 10.8H | 16.2H | 21.6H |
Electric Fan | 60W | 144H | 216H | 288H |
AC | 1.5P | 7.68H | 11.52H | 15.36H |
Washing Machine | 500W | 17.28H | 25.92H | 34.56H |
Fridge | 100w | 86.4h | 129.6H | 172.8H |
Rice Cooker | 800W | 10.8H | 16.2H | 21.6H |
Induction Cooker | 2500W | 3.46H | 5.2H | 6.91H |
Description
 | Solar Panel SP460M-144 |
| Battery ·Lithium Battery ·Gel Battery ·The battery can be parallelly connected for extending power(KW) and energy(KWh) |  |
 | Hybrid Inverter SP-3.5/5/6k-SG03LP1-EU ·Colorful touch LCD, IP65 protection degree ·DC couple and AC couple to retrofit existing solar system ·Max. 16pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel ·Max. charging/discharging current of 190A ·6 time periods for battery charging/discharging ·Support storing energy from diesel generator |
| Structure ·Mid Clamp ·End Clamp ·Rail ·Joiner ·Fastener ·Connector ·Roof Hook |  |
Many Applications
SINPO SOLAR SYSTEM is applicable to the global grid environment. It is widely used in areas where there is no electricity and power supply is in short supply.
Export Map
Certificate
Why choose Sinpo Home Energy Storage System?
Best solution for maximizing the effciency of your home's renewable energy use.
For consumers, the biggest concern regarding energy is the increase in energy costs, for example, electricity bills. By adopting renewable energy generation equipment to reduce electricity use, they may be able to reduce their costs to some degree. To obtain the best possible result, however, they need a plan to maximize the self-consumption ratio of the generated power. To do so, it is important to adopt an effective energy storage system(ESS).
Sinpo ESS ensures ease of product installtion and use
We have focused considerable R&D efforts on ESS in order to provide a world-class system. Our DC-cou-pled product based on 3-level topology helps save ESS installation costs and features compact design for a straightforward monitoring function, as well as auto operation mode for improved convenience.
Feel assured with your choice of Sinpo, the trusted company
Sinpo ESS is a complete solution with Sinpo-made parts from the battery to the PCS, providing one solution with one warranty. We offers a true one-stop solution from the incubation phase, through consulting, to design, with safety assured by certifying bodies in Europe and other parts of the word.
