/Advantages/
· Higher efficiency, +10%-25% more energy
· No back shadows design for bi-facial solar modules
· Simple structure: Easy for installation and maintenance
· Less power consumption: Only about 3-5kWh/set/year
· High frame strength: Better wind-resistance performance
· Reliable technology, low failure rate, high tracking accuracy
· Smart control, self-positioning & self-correction, low O&M cost
· Rain wash mode: Effectively reduce your solar panels washing times
· Snow prevention mode: Effectively increase your power generation time
· Single row type or small linkage type: Btter terrain adaptability
· High polymer material for rotating parts: Free maintenance for 25 years
/Technical Date/
| Item | Parameter |
| System Type | Single Row Type/2-5 Rows Linked |
| Control Mode | Time + GPS |
| Average Tracking Accuracy | 0.1°-2.0°(adjustable) |
| Gear Motor | 24V/1.5A |
| Output Torque | 5000 N.M |
| Tracking Power Consumption(Per Set) | 5kWh/year/set |
| Azimuth Angle Tracking Range | +-50° |
| Elevation Angle Tracking Range | 50° |
| Back Tracking | Yes |
| Max. Wind Resistance in Horizontal | 40 m/s |
| Max. Wind Resistance in Operation | 24 m/s |
| Material | Hot-dipped galvanized>65μm |
| System Guarantee | 3 years |
| Working Temperature | -40°C - +75°C |
| Technical Standard & Certificate | CE, TUV |
| Weight(Per Set) | 200-400 KGS |
| Total Power(Per Set) | 5kW-40kW |

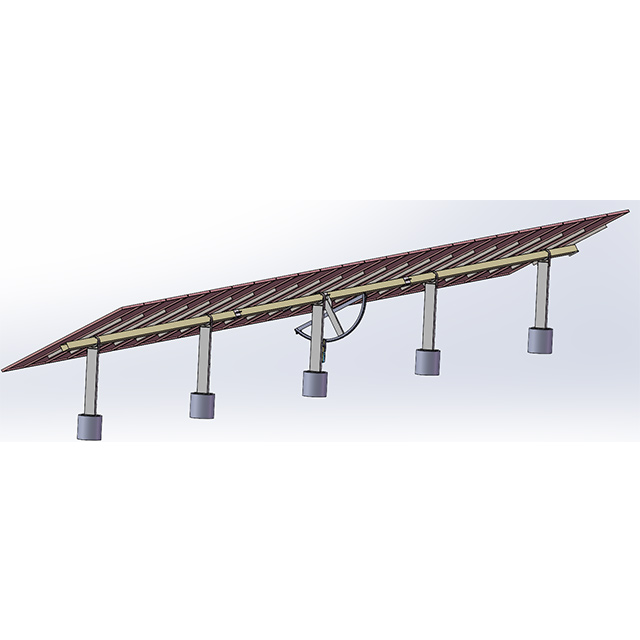

/Main Parts of Flat Single Axis Solar Tracking System/
| Item | Description | Size(mm) |
| 1 | Driving Vertical Pole | |
| 2 | Supporting | |
| 3 | Plastic Bearing | |
| 4 | Purlin Connections | Width: 34mm |
| 5 | Gear Ring | |
| 6 | Chain Link | |
| 7 | Spindle Connector | |
| 8 | Prulin | Length: 1750mm |
| 9 | Center Beam | Length: 8792mm |
