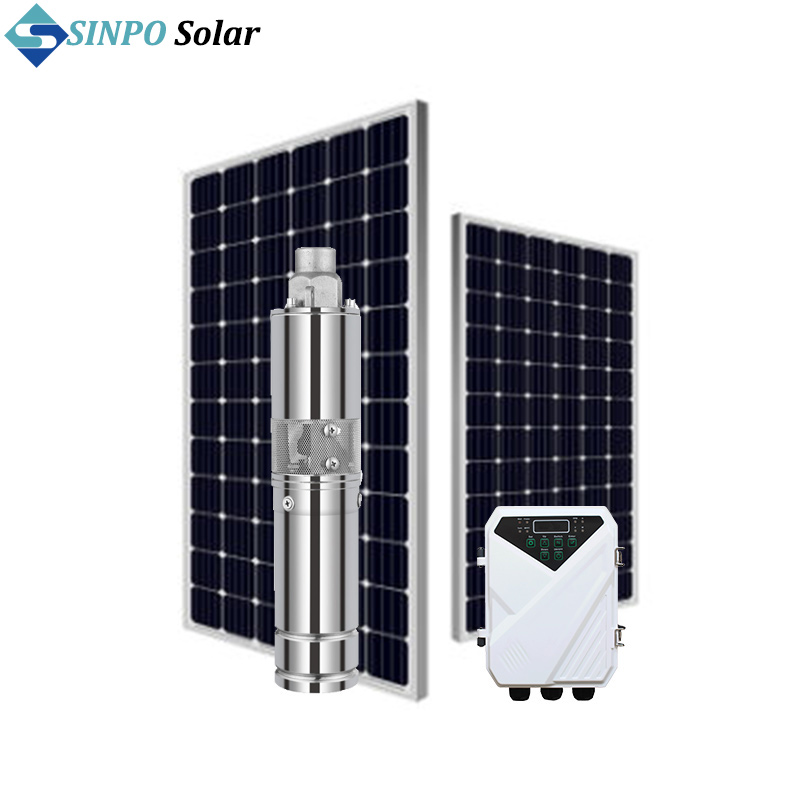

High Pressure Irrigation 2 Inch Solar Powered Water Submersible Deep Well Pump
You are here: Home » Products » Solar Pump » High Pressure Irrigation 2 Inch Solar Powered Water Submersible Deep Well Pump

loading

High Pressure Irrigation 2 Inch Solar Powered Water Submersible Deep Well Pump High Pressure Irrigation 2 Inch Solar Powered Water Submersible Deep Well Pump

High Pressure Irrigation 2 Inch Solar Powered Water Submersible Deep Well Pump

Availability:
Quantity:
Product Description

deephole-water-pump


/Product Description/


Water Pump


/Advantages/

1. DC Brushless Permanent-magnetic synchronous motor for solar power dc submersible water pump to get high speed and high efficiency.
2. 304 s/s pump shaft; Alloy mechanical seal.
3. Motor coil is made by automatic winding machine with centralized winding technology, motor efficiency is much improved.
4. Intelligent water shortage protection: the pump stops working automatically when there is no water in the well and automatically start working 30 minutes later.
5. Controller: MPPT function; frequency conversion function; Automatically working function; water proof and leak proof.


/Application/

1. Irrigation in horticulture & agriculture
2. Livestock watering
3. Gardens or fountains
4. Domestic water supply
5. Pond management
6. Small scale service industries


/Controller Advantages/

(1) MPPT function, the highest solar utilization rate
(2) The 24V/48V/72V/110V controller has an automatic charging function to ensure that the solar pump is charged while charging the battery; in the absence of sunlight, the battery can keep the solar pump working continuously.
(3) Digital display of power, voltage, current, speed and other working conditions.
(4) Frequency conversion function: It can automatically convert the frequency according to the sunlight power, and can also manually adjust the speed operation according the actual needs.
(5) Automatic power on and off.
(6) Waterproof and sealed: double sealing effect.
(7) High temperature resistance: up to 85°C high temperature.
(8) Soft start: no inrush current, protect the pump motor.
(9) High/Low voltage protection, overcurrent/overload protection, stator coil never burns.


/How to choose the correct solar water pump?/


Head Calculate
1. Distance of 'B+C+D/10' if have a water tank
2. Distance of 'B' if without water tank

Flow Calculate:
How much water per hour or per day do you want?

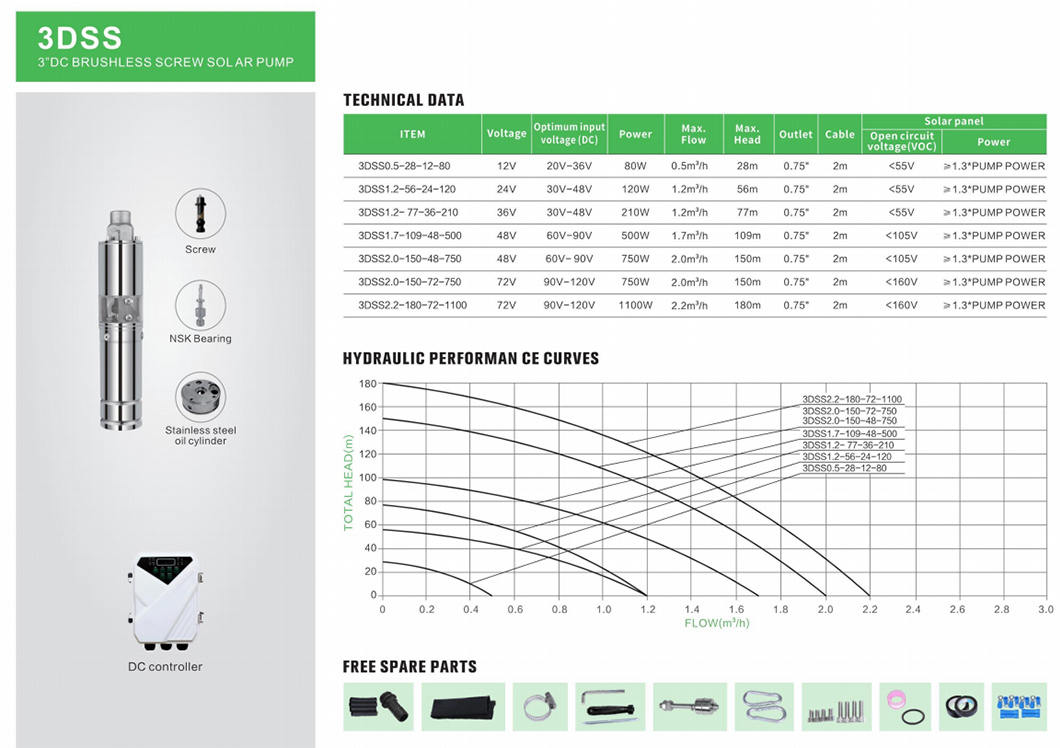

Selecting the solar pump model that meets your requirements against the pump model number table.

Solar Water Pump

Water Pump


/Market/


Solar Water Pump

Hot Products:
3DPC, 4DPC, 3DPC-A/D, 4DPC-A/D, DCPM

Market:
Southeast Asia(Thailand, Philippines, Indonesia, Cambodia, Myanmar, Vietnam, etc)

Solar Water Pump

Hot Products:
3DSS, 3DPC, DLP(South Africa)

Market:
South Africa, Zimbabwe, Zambia, Botswana, Namibia, etc

Solar Water Pump

Hot Products:
3DPC, 4DPC-A/D, 4DSS-A/D

Market:
Nigeria, Kenya, Burkina Faso, Tanzania, etc

Solar Water Pump

Hot Products:
3DPC, 4DPC, 4DSC

Market:
Afghanistan, Yemen, Saudi Arabia, Iran, etc

Solar Water Pump

Hot Products:
3DSS, 3DPC, 4DPC

Market:
Mexico, Brazil, Argentina, Peru, etc

Solar Water Pump

Hot Products:
3DSS, 4DSC, DLP
Market:
Australia

Hot Products:
3DSS, 4DSC-A/D
Market:
Europe, United States

Hot Products:
3DSS, 4DLR
Market:
Spain


/FAQ/


1. Q: What's your MOQ?
A: Trial sample order is acceptable.
2. Q: What's your payment terms?
A: T/T, L/C
3. Q: What is the delivery time?
A: 20-30 days after receiving the deposit.
4. Q: Can you support OEM brand?
A: Yes, OEM is acceptable.
5. Q: How to buy solar pumps?
A: In order to help you purchase the right solar water pump, please offer the following necessary info:
1. What is the fluid? Clean water(temperature), dirty water(temperature), particles or slurry?
2. What is the flow, head and the power?
3. What is the voltage and frequency of three phase electrcity?
4. Pump type, motor?
